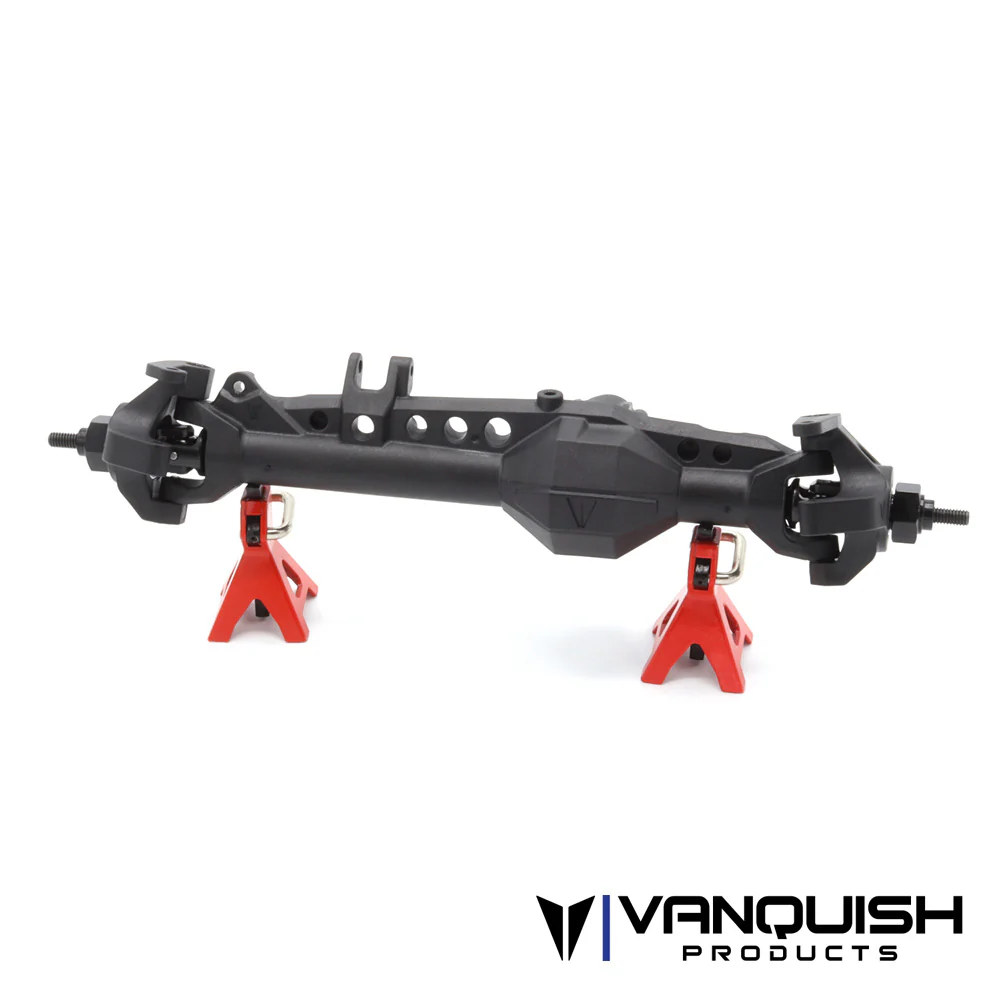

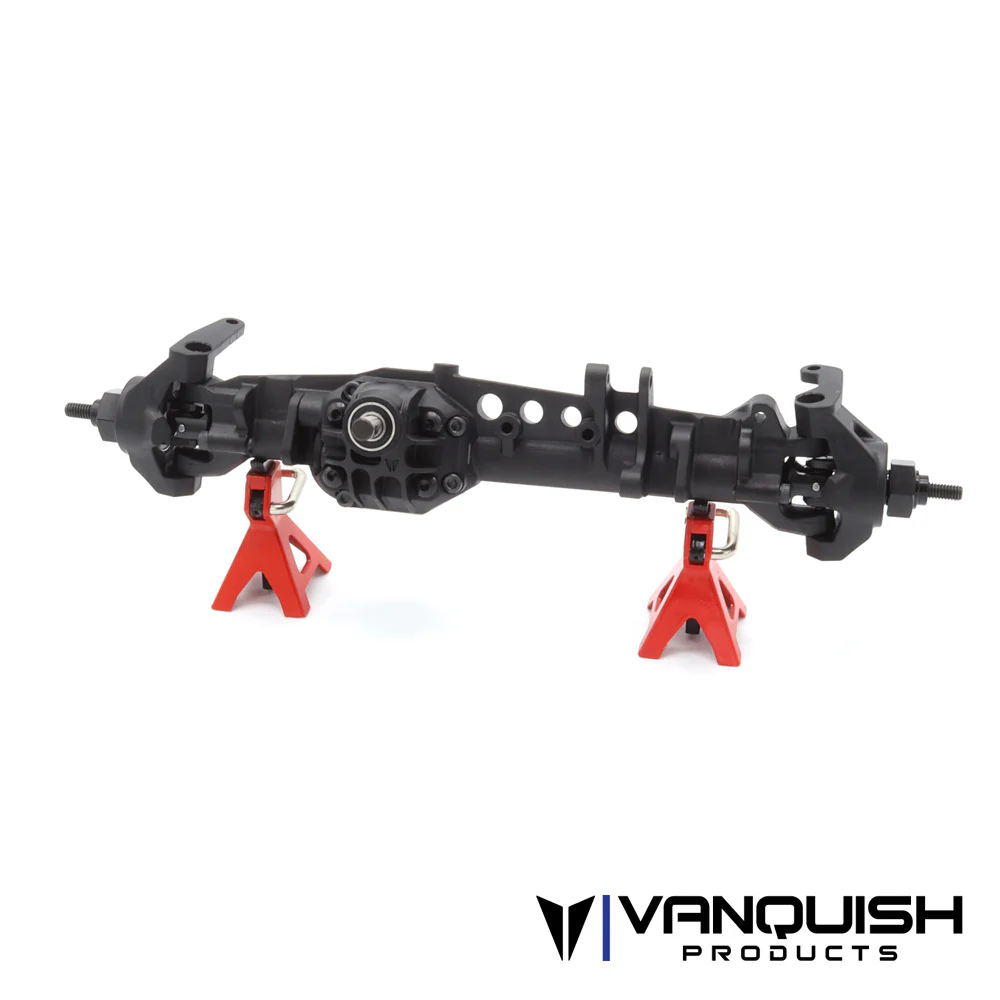

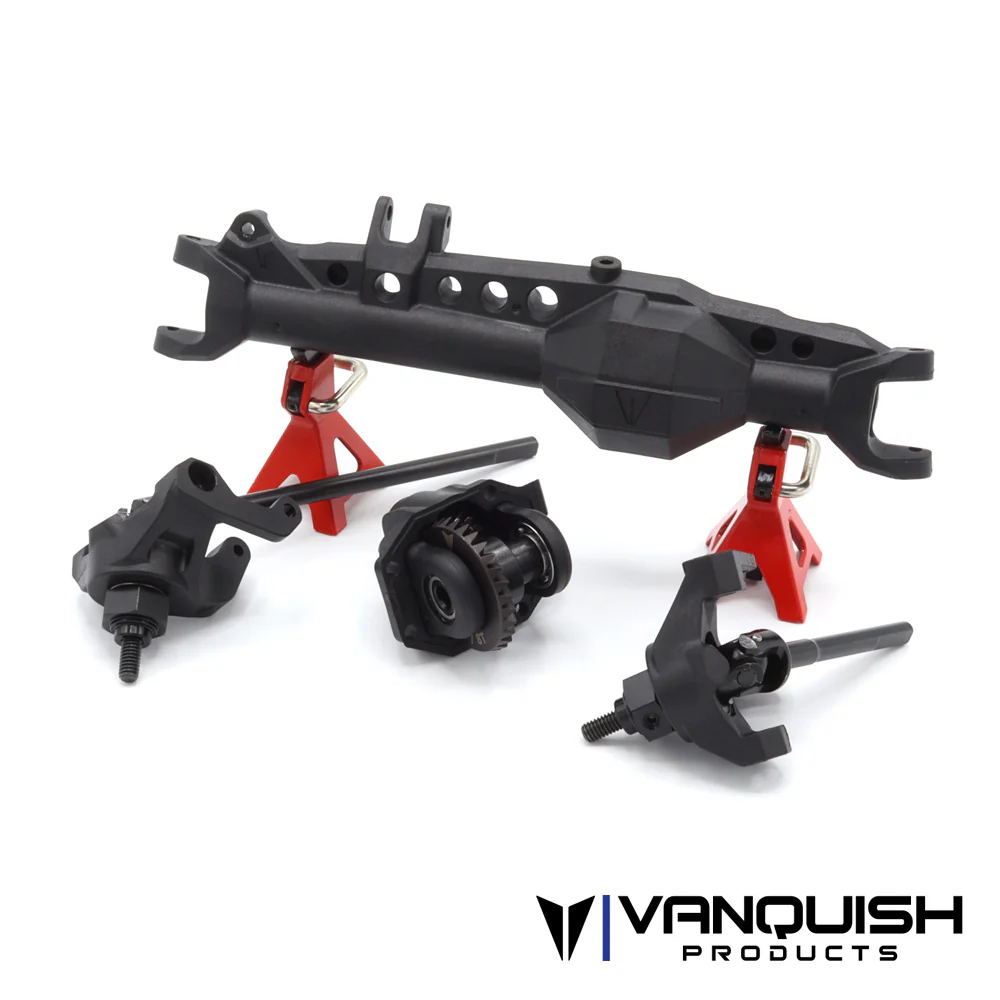

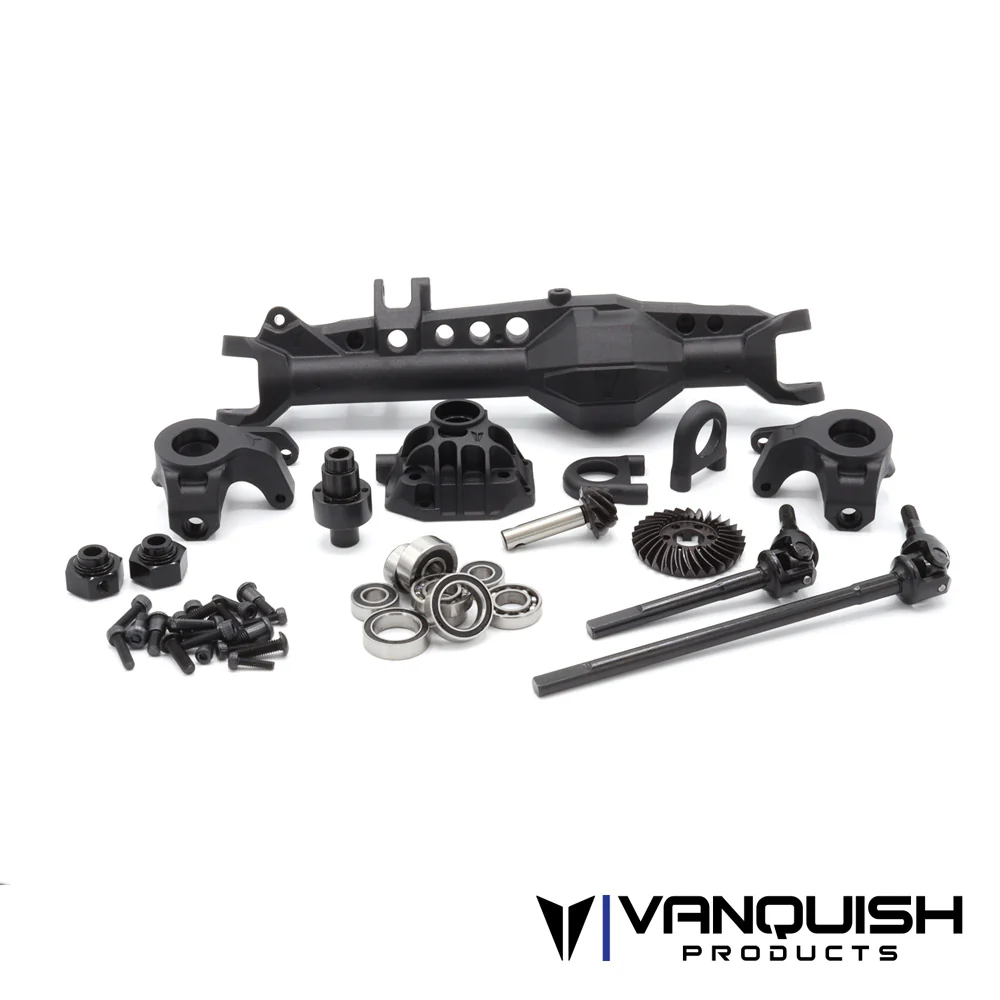

F10 Straight Front Axle Set

The F10 Plastic straights axles benefit from Vanquish Product’s years of design experience in making the industry’s best aluminum axles. The plastic molded F10 straight axles feature an ultra rigid design with an integrated truss that ties both ends of the axle together, reinforced panhard mount and integrated oversized axle c's for added strength and reliability.

F10 Front Straight Axle Set:

• Molded Plastic Axle housing
• Universal Style Axle Shafts
• 49 Degrees of Steering
• High Caster reinforced C-Hub
• High-Pinion Hypoid Machined Axle Gears 30/8 (VPS08330)
• 6-Bolt Ring Gear and Spool
• One-Piece Molded Bearing Retainers
• Adjustable Lower Shock Mounting Position (S8E Offset Pivot Ball IRC00509)
• Chromoly universal shafts
• Scale removable third member

Note:

• Optional lower ratio ring and pinion (8/33) available VPS08331
• Compatible with all Vanquish SLW and Incision hubs.
• For use with Phoenix, Ultra, Pro, and SCX10II Bent steering tie rod.
• Does not include link mounting hardware
• Incision .280" width pivot ball compatible
• For use with IRC00509 S8E lower shock mount offset pivot ball at shock mount locations

Recommended for use with the following:

• VPS10130 VS4-10 Chassis Kit
• IRC00303 VS4-10 F10 Link Set
• VPS0152 VFD Transmission Kit
• VPS10200 VFD Twin Transmission Kit
