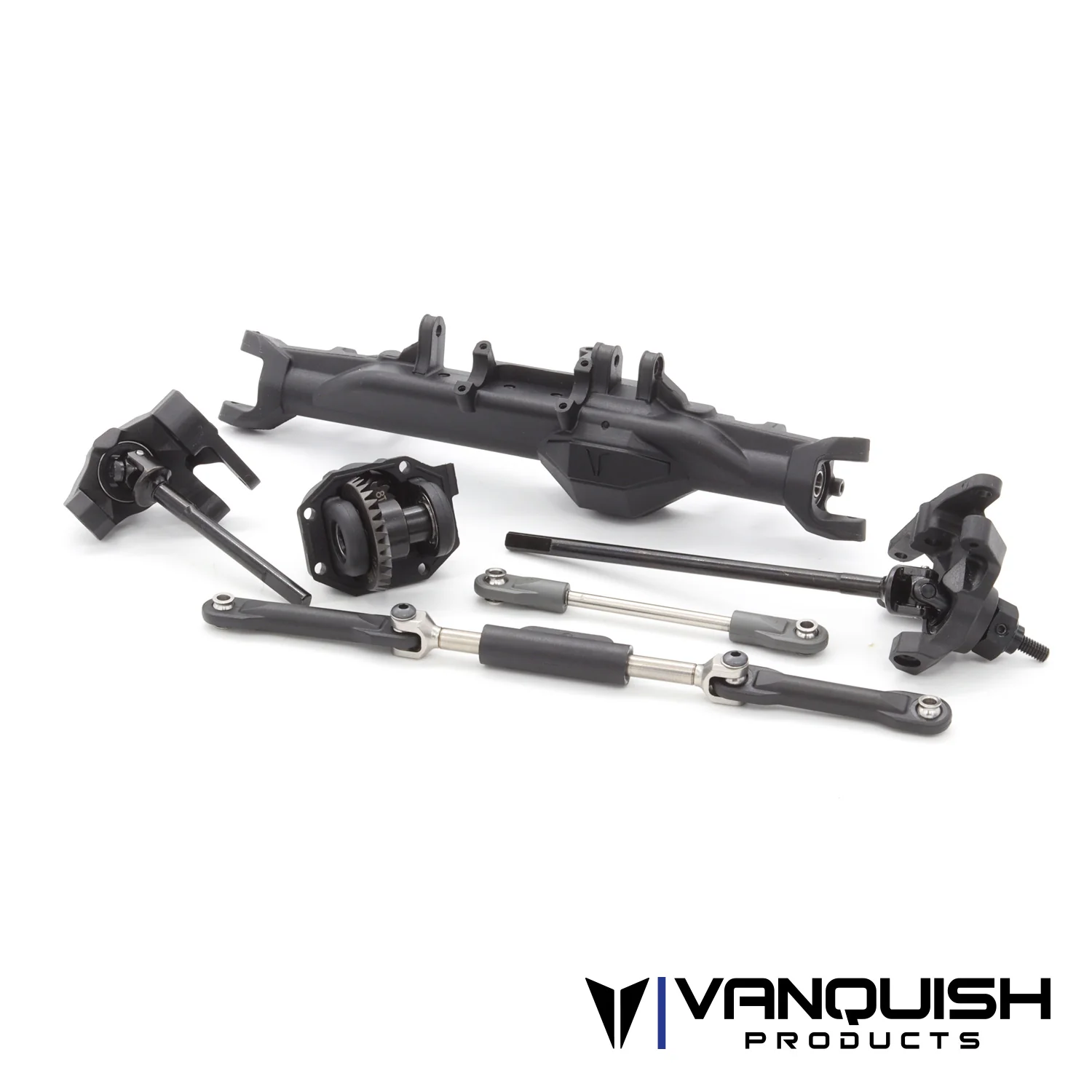

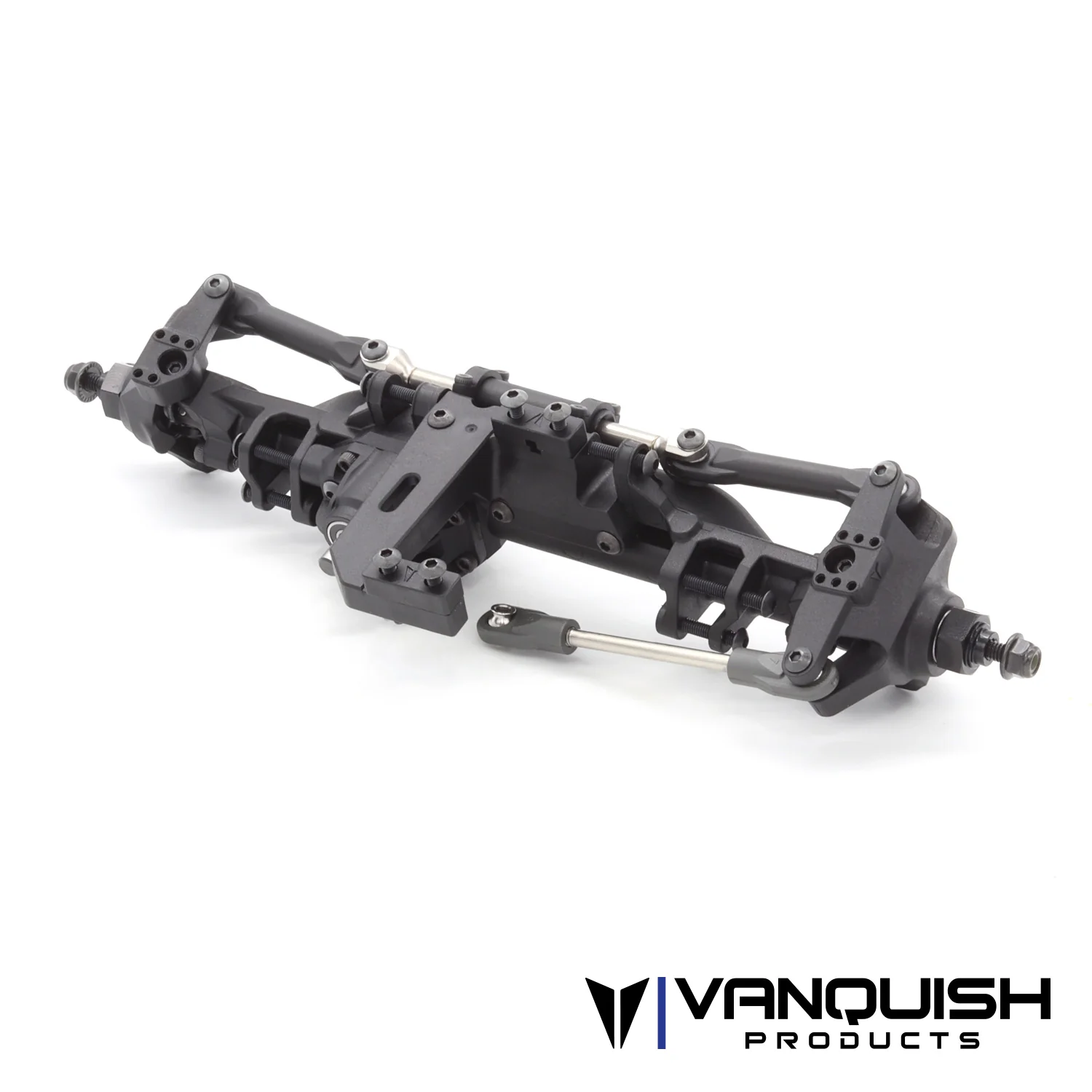

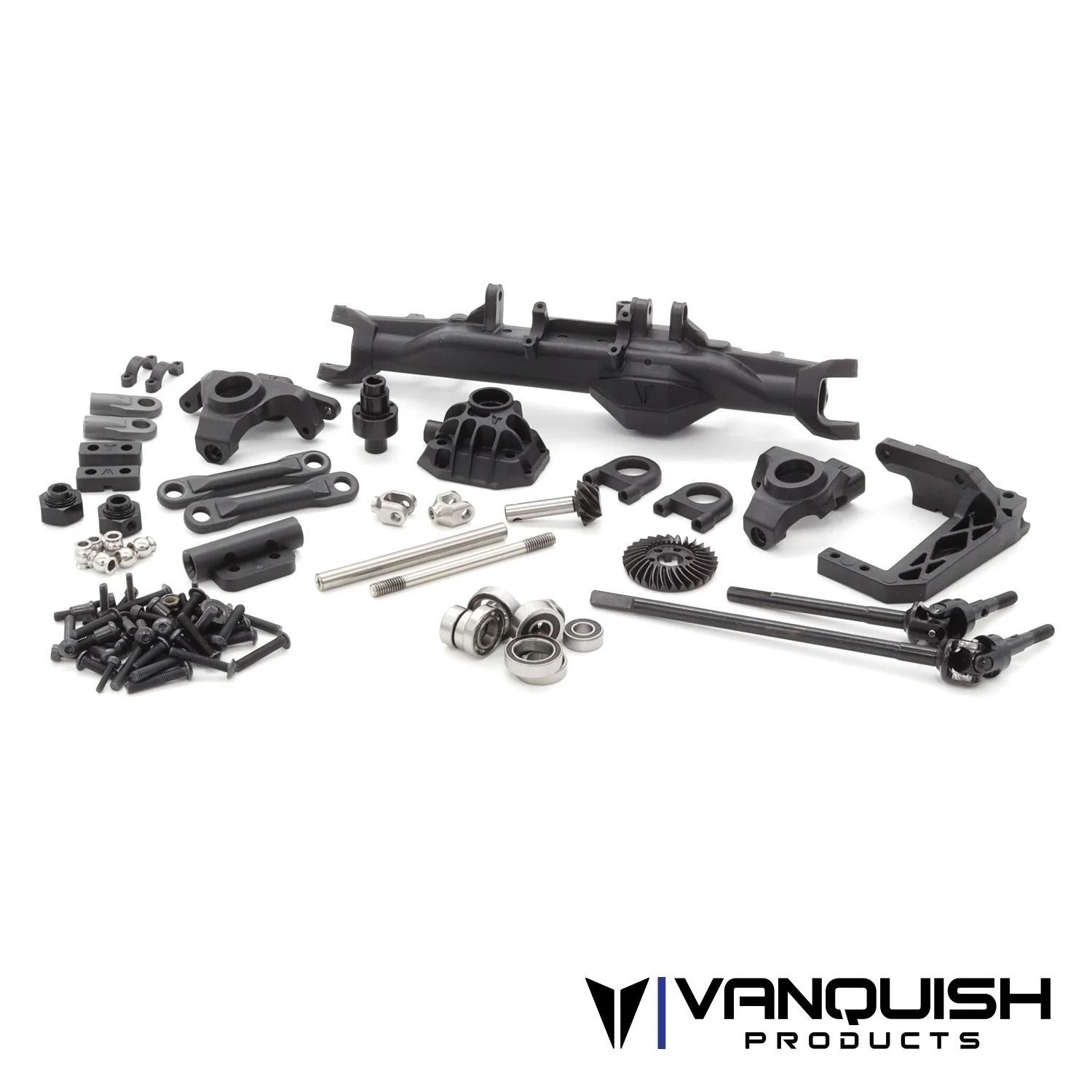

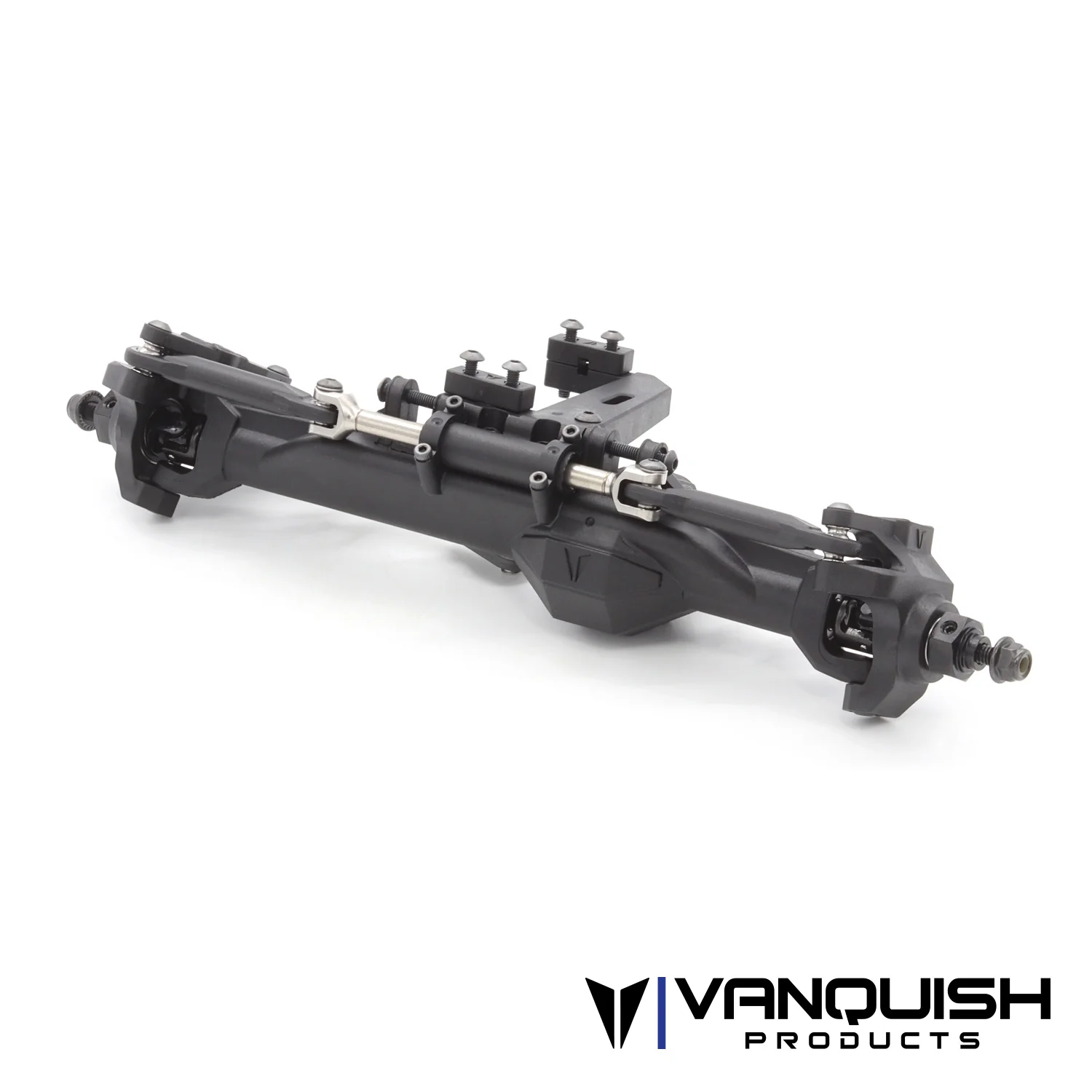

H10 Front Axle Set

The H10 axle kit offers a complete axle package that brings performance and style to your build. The plastic molded H10 axles feature an ultra rigid design that is made to run 4-link suspension with the behind the axle servo mount. The simulated hydraulic ram replaces a traditional tie rod and gives the appearance of hydraulic steering like is used on extreme full-size offroad buggies.

H10 Front Straight Axle Set:

• 206.5mm Hex Face Width (8.13")
• Molded Plastic Axle housing
• Universal Style Axle Shafts
• 49 Degrees of Steering
• High Caster reinforced C-Hub
• High-Pinion Hypoid Machined Axle Gears 30/8 (VPS08330)
• 6-Bolt Ring Gear and Spool
• One-Piece Molded Bearing Retainers
• Adjustable Lower Shock Mounting Position (S8E Offset Pivot Ball IRC00509)
• Chromoly universal shafts
• Scale removable third member

Note:

• Optional lower ratio ring and pinion (8/33) available VPS08331
• Compatible with all Vanquish SLW and Incision hubs.

• Does not include link mounting hardware
• Incision .280" width pivot ball compatible
• For use with IRC00509 S8E lower shock mount offset pivot ball at shock mount locations

Compatible with the following:

• VPS09010 H10 Optic RTR
